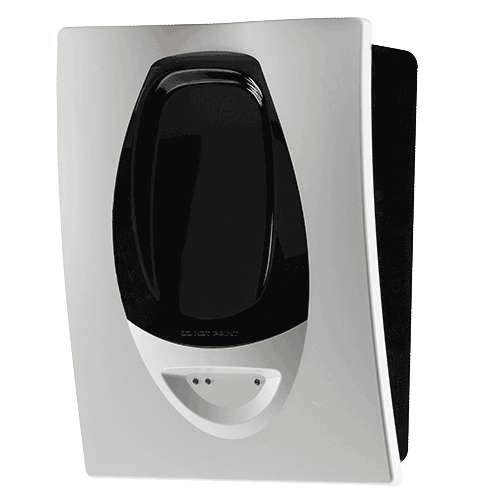

4-wire, single-ended, reflected type beam smoke detector that includes an 8" reflector and an integral sensitivity test.

<< Fire Alarm System << System Sonsor << 4-wire, single-ended, reflected type beam smoke detector that includes an 8" reflector and an integral sensitivity test.

Code : BEAM1224 (S)

Price : 0

Download PDF

Specifications
Alarm Current:                                38.5mA max. avg.
Detection:                                       Infrared Beam

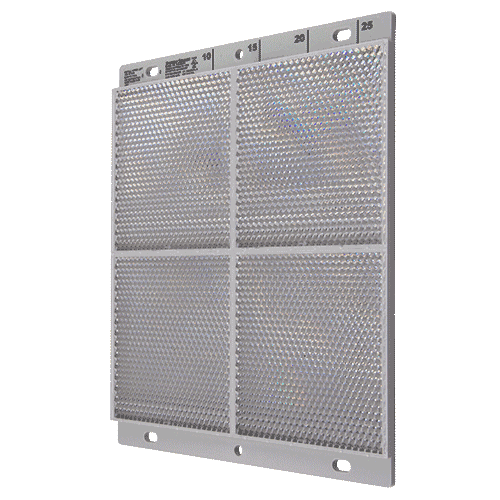

Dimensions:Detector:                     10" H x 7.5" W x 3.3" D (254mm x 191mm x 84mm)Reflector, 16-230ft.: 7.9" H    x 9.1" W (200mm x 230mm)
Operating Humidity Range:            10% to 93% RH non-condensing
Operating Temperature Range:      -22°F to 131°F (-30°C to 55°C)
Operating Voltage:                          15 to 32 VDC
Range:                                            16 ft. to 328 ft. (5m to 100m)
Sensitivity:                                      Level 1 - 25%;Level 2 - 30%;Level 3 - 40%;Level 4 - 50%;Acclimate Level 1 -       30-50%;Acclimate Level 2 - 40-50%
Standby Current:                            17mA max. @ 24 VDC
Trouble Current:                             8.5mA max. @ 24 VDC
Wiring:                                            4-Wire
